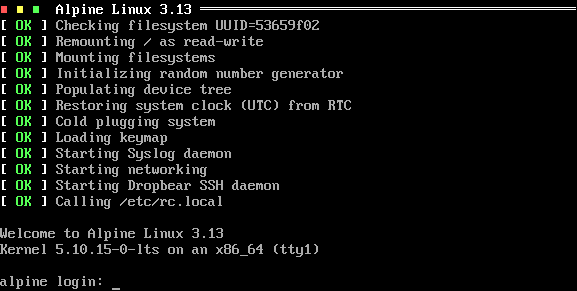

[![License Badge][]][License] [![GitHub Status][]][GitHub] [![Coverity Status][]][Coverity Scan] Finit: Fast Init * [Introduction](#introduction) * [Features](#features) * [Bootstrap](doc/bootstrap.md#bootstrap) * [Runlevels](#runlevels) * [Syntax](doc/config.md#syntax) * [Runparts & /etc/rc.local](#runparts--etcrclocal) * [Hooks, Callbacks & Plugins](doc/plugins.md#hooks-callbacks--plugins) * [Rebooting & Halting](#rebooting--halting) * [Commands & Status](#commands--status) * [Tips & Tricks with the kernel cmdline](doc/cmdline.md) * [Building](doc/build.md#building) * [Running](doc/build.md#running) * [Recovery](doc/build.md#recovery) * [Debugging](doc/build.md#debugging) * [Requirements](#requirements) * [Origin & References](#origin--references) Introduction ------------ Fast init for Linux systems. Reverse engineered from the [EeePC fastinit][] over ten years ago by [Claudio Matsuoka][] — "gaps filled with frog DNA …" ![Alpine screenshot](img/finit4-screenshot.png) *Figure 1: Screenshot showing Finit booting [Alpine Linux](https://www.alpinelinux.org/).* Features include: * Runlevels, defined per service * One-shot tasks, services (daemons), or [SysV init][4] start/stop scripts * Runparts and `/etc/rc.local` support * Process supervision similar to [systemd][] * Sourcing environment files * Conditions for network/process/custom dependencies * Pre/Post script actions * Tooling to enable/disable services * Built-in getty * Built-in watchdog, with support for hand-over to [watchdogd](https://troglobit.com/watchdogd.html) * Built-in support for Debian/BusyBox `/etc/network/interfaces` * Cgroups v2, both configuration and monitoring in `initctl top` * Plugin support for customization * Proper rescue mode with bundled `sulogin` for protected maintenance shell Focus is on small and embedded systems, although Finit is fully usable on server and desktop systems as well. For working examples, see the [contrib/](contrib/) section with tutorials for: * [Void Linux](contrib/void/), * [Alpine Linux](contrib/alpine/), and * [Debian GNU/Linux](contrib/debian/) Example ------- This example `/etc/finit.conf` can also be split up in multiple `.conf` files in `/etc/finit.d`. Available, but not yet enabled, services can be placed in `/etc/finit.d/available` and enabled by an operator using the [initctl](#commands--status) tool. ```ApacheConf # Fallback if /etc/hostname is missing host default # Runlevel to start after bootstrap, 'S', default: 2 runlevel 2 # Max file size for each log file: 100 kiB, rotate max 4 copies: # log => log.1 => log.2.gz => log.3.gz => log.4.gz log size=100k count=4 # Services to be monitored and respawned as needed service [S12345] env:-/etc/conf.d/watchdog watchdog $WATCHDOG_OPTS $WATCHDOG_DEV -- System watchdog daemon service [S12345] env:-/etc/conf.d/syslog syslogd -n $SYSLOGD_OPTS -- System log daemon service [S12345] env:-/etc/conf.d/klogd klogd -n $KLOGD_OPTS -- Kernel log daemon service [2345] env:-/etc/conf.d/lldpd lldpd -d $LLDPD_OPTS -- LLDP daemon (IEEE 802.1ab) # The BusyBox ntpd does not use syslog when running in the foreground # So we use this trick to redirect stdout/stderr to a log file. The # log file is rotated with the above settings. The condition declares # a dependency on a system default route (gateway) to be set. A single # at the beginning means ntpd does not respect SIGHUP for restart. service [2345] log:/var/log/ntpd.log ntpd -n -l -I eth0 -- NTP daemon # For multiple instances of the same service, add :ID somewhere between # the service/run/task keyword and the command. service :80 [2345] merecat -n -p 80 /var/www -- Web server service :8080 [2345] merecat -n -p 8080 /var/www -- Old web server # Alternative method instead of below runparts, can also use /etc/rc.local #sysv [S] /etc/init.d/keyboard-setup -- Setting up preliminary keymap #sysv [S] /etc/init.d/acpid -- Starting ACPI Daemon #task [S] /etc/init.d/kbd -- Preparing console # Run start scripts from this directory # runparts /etc/start.d # Virtual consoles run BusyBox getty, keep kernel default speed tty [12345] /sbin/getty -L 0 /dev/tty1 linux nowait noclear tty [2345] /sbin/getty -L 0 /dev/tty2 linux nowait noclear tty [2345] /sbin/getty -L 0 /dev/tty3 linux nowait noclear # Use built-in getty for serial port and USB serial #tty [12345] /dev/ttyAMA0 noclear nowait #tty [12345] /dev/ttyUSB0 noclear # Just give me a shell, I need to debug this embedded system! #tty [12345] console noclear nologin ``` The `service` stanza, as well as `task`, `run` and others are described in full in [doc/config.md](doc/config.md). Here's a quick overview of some of the most common components needed to start a UNIX daemon: ``` service [LVLS] log env:[-]/etc/default/daemon daemon ARGS -- Daemon daemon ^ ^ ^ ^ ^ ^ ^ ^ | | | | | | | `---------- Optional description | | | | | | `------------------ Daemon arguments | | | | | `------------------------- Path to daemon | | | | `---------------------------------------------------- Optional env. file | | | `-------------------------------------------------------- Redirect output to log | | `--------------------------------------------------------------- Optional conditions | `---------------------------------------------------------------------- Optional Runlevels `------------------------------------------------------------------------------ Monitored application ``` Some components are optional: runlevel(s), condition(s) and description, making it easy to create simple start scripts and still possible for more advanced uses as well: service /usr/sbin/sshd -D Dependencies are handled using [conditions](doc/conditions.md). One of the most common conditions is to wait for basic networking to become available: service nginx -- High performance HTTP server Here is another example where we instruct Finit to not start BusyBox `ntpd` until `syslogd` has started properly. Finit waits for `syslogd` to create its PID file, by default `/var/run/syslogd.pid`. service [2345] log ntpd -n -N -p pool.ntp.org service [S12345] syslogd -n -- Syslog daemon Notice the `log` keyword, BusyBox `ntpd` uses `stderr` for logging when run in the foreground. With `log` Finit redirects `stdout` + `stderr` to the system log daemon using the command line `logger(1)` tool. A service, or task, can have multiple dependencies listed. Here we wait for *both* `syslogd` to have started and basic networking to be up: service [2345] log ntpd -n -N -p pool.ntp.org If either condition fails, e.g. loss of networking, `ntpd` is stopped and as soon as it comes back up again `ntpd` is restarted automatically. **Note:** Make sure daemons *do not* fork and detach themselves from the controlling TTY, usually an `-n` or `-f` flag, or `-D` as in the case of OpenSSH above. If it detaches itself, Finit cannot monitor it and will instead try to restart it. Features -------- **Process Supervision** Start, monitor and restart services should they fail. **Getty** Finit supports external getty but also comes with a limited built-in Getty, useful for really small systems. A getty sets up the TTY and waits for user input before handing over to `/bin/login`, which is responsible for handling the actual authentication. ```conf tty [12345] /dev/tty1 nowait linux tty [12345] /dev/ttyAMA0 noclear vt100 tty [12345] /sbin/getty -L /dev/ttyAMA0 vt100 ``` Users of embedded systems may want to enable automatic serial console with the special `@console` device. This works regardless weather the system uses `ttyS0`, `ttyAMA0`, `ttyMXC0`, or anything else. Finit figures it out by querying sysfs: `/sys/class/tty/console/active`. ```conf tty [12345] @console linux noclear ``` Notice the optional `noclear`, `nowait`, and `nologin` flags. The latter is for skipping the login process entirely. For more information, see [doc/config.md](doc/config.md#syntax). **Runlevels** Support for SysV init-style [runlevels][5] is available, in the same minimal style as everything else in Finit. The `[2345]` syntax can be applied to service, task, run, and TTY stanzas. Reserved runlevels are 0 and 6, halt and reboot, respectively just like SysV init. Runlevel 1 can be configured freely, but is recommended to be kept as the system single-user runlevel since Finit will not start networking here. The configured `runlevel NUM` from `/etc/finit.conf` is what Finit changes to after bootstrap, unless 'single' (or 'S') is given on the kernel cmdline, in which case runlevel 1 is started. All services in runlevel S(0) are started first, followed by the desired run-time runlevel. Run tasks in runlevel S can be started in sequence by using `run [S] cmd`. Changing runlevels at runtime is done like any other init, e.g. init 4, but also using the more advanced `intictl` tool. **Plugins** Plugins can *extend* the functionality of Finit and *hook into* the different stages of the boot process and at runtime. Plugins are written in C and compiled into a dynamic library loaded automatically by finit at boot. A basic set of plugins are bundled in the `plugins/` directory. Capabilities: - **Hooks** Hook into the boot at predefined points to extend Finit - **I/O** Listen to external events and control Finit behavior/services Extensions and functionality not purely related to what an `/sbin/init` needs to start a system are available as a set of plugins that either hook into the boot process or respond to various I/O. For more information, see [doc/plugins.md](doc/plugins.md). **Automatic Reload** By default, Finit monitors `/etc/finit.d/` and `/etc/finit.d/enabled/` registering any changes to `.conf` files. To activate a change the user must call `initctl reload`, which reloads all modified files, stops any removed services, starts new ones, and restarts any modified ones. If the command line arguments of a service have changed, the process will be terminated and then started again with the updated arguments. If the arguments have not been modified and the process supports SIGHUP, the process will receive a SIGHUP rather than being terminated and started. For some use-cases the extra step of calling `initctl reload` creates an unnecessary overhead, which can be removed at build-time using: configure --enable-auto-reload **Cgroups** Finit supports cgroups v2 and comes with the following default groups in which services and user sessions are placed in: /sys/fs/cgroup |-- init/ # cpu.weight:100 |-- system/ # cpu.weight:9800 `-- user/ # cpu.weight:100 Finit itself and its helper scripts and services are placed in the top-level leaf-node group `init/`, which also is _reserved_. All run/task/service/sysv processes are placed in their own sub-group in `system/`. The name of each sub-group is taken from the respective `.conf` file from `/etc/finit.d`. All getty/tty processes are placed in their own sub-group in `user/`. The name of each sub-group is taken from the username. A fourth group also exists, the `root` group. It is also _reserved_ and primarily intended for RT tasks. If you have RT tasks they need to be declared as such in their service stanza like this: service [...] <...> cgroup.root /path/to/foo args -- description or cgroup.root service [...] <...> /path/to/foo args -- description service [...] <...> /path/to/bar args -- description See [doc/config.md](doc/config.md#cgroups) for more information, e.g., how to configure per-group limits. The `initctl` tool has three commands to help debug and optimize the setup and monitoring of cgroups. See the `ps`, `top`, and `cgroup` commands for details. Runparts & /etc/rc.local ------------------------ At the end of the boot, when all bootstrap (`S`) tasks and services have started, but not networking, Finit calls its built-in [run-parts(8)][] command on any configured `runparts ` directory. This happens just before changing to the configured runlevel (default 2). (Networking is enabled just prior to changing from single user mode.) ```shell runparts /etc/rc.d/ ``` Right after the runlevel change when all services have started properly, `/etc/rc.local` is called. No configuration stanza in `/etc/finit.conf` is required for `rc.local`. If it exists and is an executable shell script Finit calls it at the very end of the boot, before calling the `HOOK_SYSTEM_UP`. See more on hooks in [doc/plugins.md](doc/plugins.md#hooks), and about the system bootstrap in [doc/bootstrap.md](doc/bootstrap.md). Runlevels --------- Basic support for [runlevels][5] is included in Finit from v1.8. By default all services, tasks, run commands and TTYs listed without a set of runlevels get a default set `[234]` assigned. The default runlevel after boot is 2. Finit supports runlevels 0-9, and S, with 0 reserved for halt, 6 reboot and S for services to only run at bootstrap. Runlevel 1 is the single user level, where usually no networking is enabled. In Finit this is more of a policy for the user to define. Normally only runlevels 1-6 are used, and even more commonly, only the default runlevel is used. To specify an allowed set of runlevels for a `service`, `run` command, `task`, or `tty`, add `[NNN]` to your `/etc/finit.conf`, like this: ``` service [S12345] syslogd -n -x -- System log daemon run [S] /etc/init.d/acpid start -- Starting ACPI Daemon task [S] /etc/init.d/kbd start -- Preparing console service [S12345] klogd -n -x -- Kernel log daemon tty [12345] /dev/tty1 tty [2] /dev/tty2 tty [2] /dev/tty3 tty [2] /dev/tty4 tty [2] /dev/tty5 tty [2] /dev/tty6 ``` In this example syslogd is first started, in parallel, and then acpid is called using a conventional SysV init script. It is called with the run command, meaning the following task command to start the kbd script is not called until the acpid init script has fully completed. Then the keyboard setup script is called in parallel with klogd as a monitored service. Again, tasks and services are started in parallel, while run commands are called in the order listed and subsequent commands are not started until a run command has completed. Also, task and run commands are run in a shell, so pipes and redirects can be used. The following examples illustrate this. Bootstrap task and run commands are also removed when they have completed, `initctl show` will not list them. ``` task [S] echo "foo" | cat >/tmp/bar run [S] echo "$HOME" >/tmp/secret ``` Switching between runlevels can be done by calling init with a single argument, e.g. init 5, or using `initctl runlevel 5`, both switch to runlevel 5. When changing runlevels Finit also automatically reloads all `.conf` files in the `/etc/finit.d/` directory. So if you want to set a new system config, switch to runlevel 1, change all config files in the system, and touch all `.conf` files in `/etc/finit.d` before switching back to the previous runlevel again — that way Finit can both stop old services and start any new ones for you, without rebooting the system. Rebooting & Halting ------------------- Traditionally, rebooting and halting a UNIX system is done by changing its runlevel. Finit comes with its own tooling providing: `shutdown`, `reboot`, `poweroff`, and `suspend`, but also the `initctl` tool, detailed in the next section. For compatibility reasons Finit listens to the same set of signals as BusyBox init. This is not 100% compatible with SysV init, but clearly the more common combination for Finit. For more details, see [doc/signals.md](doc/signals.md). Commands & Status ----------------- Finit also implements a modern API to query status, and start/stop services, called `initctl`. Unlike `telinit` the `initctl` tool does not return until the given command has fully completed. ``` alpine:~# initctl help Usage: initctl [OPTIONS] [COMMAND] Options: -b, --batch Batch mode, no screen size probing -c, --create Create missing paths (and files) as needed -f, --force Ignore missing files and arguments, never prompt -1, --once Only one lap in commands like 'top' -p, --plain Use plain table headings, no ctrl chars -q, --quiet Silent, only return status of command -t, --no-heading Skip table headings -v, --verbose Verbose output -h, --help This help text Commands: debug Toggle Finit (daemon) debug help This help text version Show Finit version ls | list List all .conf in /etc/finit.d create Create .conf in /etc/finit.d/available delete Delete .conf in /etc/finit.d/available show Show .conf in /etc/finit.d/available edit Edit .conf in /etc/finit.d/available touch Change .conf in /etc/finit.d/available enable Enable .conf in /etc/finit.d/available disable Disable .conf in /etc/finit.d/enabled reload Reload *.conf in /etc/finit.d (activate changes) cond set Set (assert) user-defined condition +usr/COND cond clear Clear (deassert) user-defined condition -usr/COND cond status Show condition status, default cond command cond dump Dump all conditions and their status log [NAME] Show ten last Finit, or NAME, messages from syslog start [:ID] Start service by name, with optional ID stop [:ID] Stop/Pause a running service by name reload [:ID] Reload service by name (SIGHUP or restart) restart [:ID] Restart (stop/start) service by name status [:ID] Show service status, by name status Show status of services, default command cgroup List cgroup config overview ps List processes based on cgroups top Show top-like listing based on cgroups runlevel [0-9] Show or set runlevel: 0 halt, 6 reboot reboot Reboot system halt Halt system poweroff Halt and power off system suspend Suspend system ``` For services *not* supporting `SIGHUP` the `` notation in the .conf file must be used to tell Finit to stop and start it on `reload` and `runlevel` changes. If `<>` holds more [conditions](doc/conditions.md), these will also affect how a service is maintained. > **Note:** even though it is possible to start services not belonging in > the current runlevel these services will not be respawned automatically > by Finit if they exit (crash). Hence, if the runlevel is 2, the below > Dropbear SSH service will not be restarted if it is killed or exits. The `status` command is the default, it displays a quick overview of all monitored run/task/services. Here we call `initctl -p`, suitable for scripting and documentation: ``` alpine:~# initctl -p PID IDENT STATUS RUNLEVELS DESCRIPTION ====================================================================== 1506 acpid running [--2345----] ACPI daemon 1509 crond running [--2345----] Cron daemon 1489 dropbear running [--2345----] Dropbear SSH daemon 1511 klogd running [S12345----] Kernel log daemon 1512 ntpd running [--2345----] NTP daemon 1473 syslogd running [S12345----] Syslog daemon alpine:~# initctl -pv PID IDENT STATUS RUNLEVELS COMMAND ====================================================================== 1506 acpid running [--2345----] acpid -f 1509 crond running [--2345----] crond -f -S $CRON_OPTS 1489 dropbear running [--2345----] dropbear -R -F $DROPBEAR_OPTS 1511 klogd running [S12345----] klogd -n $KLOGD_OPTS 1512 ntpd running [--2345----] ntpd -n $NTPD_OPTS 1473 syslogd running [S12345----] syslogd -n ``` The environment variables to each of the services above are read from, in the case of Alpine Linux, `/etc/conf.d/`. Other distributions may have other directories, e.g., Debian use `/etc/default/`. The `status` command takes an optional `NAME:ID` argument. Here we check the status of `dropbear`, which only has one instance in this system: ``` alpine:~# initctl -p status dropbear Status : running Identity : dropbear Description : Dropbear SSH daemon Origin : /etc/finit.d/enabled/dropbear.conf Environment : -/etc/conf.d/dropbear Condition(s): Command : dropbear -R -F $DROPBEAR_OPTS PID file : !/run/dropbear.pid PID : 1485 User : root Group : root Uptime : 2 hour 46 min 56 sec Runlevels : [--2345----] Memory : 1.2M CGroup : /system/dropbear cpu 0 [100, max] mem [--.--, max] |- 1485 dropbear -R -F |- 2634 dropbear -R -F |- 2635 ash `- 2652 initctl -p status dropbear Apr 8 12:19:49 alpine authpriv.info dropbear[1485]: Not backgrounding Apr 8 12:37:45 alpine authpriv.info dropbear[2300]: Child connection from 192.168.121.1:47834 Apr 8 12:37:46 alpine authpriv.notice dropbear[2300]: Password auth succeeded for 'root' from 192.168.121.1:47834 Apr 8 12:37:46 alpine authpriv.info dropbear[2300]: Exit (root) from <192.168.121.1:47834>: Disconnect received Apr 8 15:02:11 alpine authpriv.info dropbear[2634]: Child connection from 192.168.121.1:48576 Apr 8 15:02:12 alpine authpriv.notice dropbear[2634]: Password auth succeeded for 'root' from 192.168.121.1:48576 ``` Requirements ------------ Finit is capable of running on both desktop/server systems with udev and embedded systems that usually come with BusyBox mdev. Some systems have systemd-udev or eudev today instead of the original udev, Finit probes for all of them at runtime and expects `/dev/` to be a writable file system using `devtmpfs`. It is also possible to run on a statically set up `/dev` if needed. It is however not a good idea to have both udev and mdev installed at the same time, this will lead to unpredictable results. At boot Finit calls either `mdev` or `udevd` to populate `/dev`, this is done slightly differently and on systems with udev you might want to add the following one-shot task early in your `/etc/finit.conf`: ```conf run [S] udevadm settle --timeout=120 -- Waiting for udev ``` Finit has a built-in Getty for TTYs, but requires a working `/bin/login` or `/bin/sh`, if no TTYs are configured in `/etc/finit.conf`. For a fully operational system `/var`, `/run` and `/tmp` must be set up properly in `/etc/fstab` -- which is iterated over at boot. Origin & References ------------------- This project is based on the [original finit][] by [Claudio Matsuoka][] which was reverse engineered from syscalls of the [EeePC fastinit][] — "gaps filled with frog DNA …" Finit is developed and maintained by [Joachim Wiberg][] at [GitHub][6]. Please file bug reports, clone it, or send pull requests for bug fixes and proposed extensions. [1]: https://en.wikipedia.org/wiki/Process_supervision [2]: https://cr.yp.to/daemontools.html [3]: https://smarden.org/runit/ [4]: https://en.wikipedia.org/wiki/Init [5]: https://en.wikipedia.org/wiki/Runlevel [6]: https://github.com/troglobit/finit [RFC862]: https://tools.ietf.org/html/rfc862 [RFC863]: https://tools.ietf.org/html/rfc863 [RFC864]: https://tools.ietf.org/html/rfc864 [RFC867]: https://tools.ietf.org/html/rfc867 [RFC868]: https://tools.ietf.org/html/rfc868 [init]: https://en.wikipedia.org/wiki/Init [upstart]: https://upstart.ubuntu.com/ [systemd]: https://www.freedesktop.org/wiki/Software/systemd/ [openrc]: https://www.gentoo.org/proj/en/base/openrc/ [run-parts(8)]: https://manpages.debian.org/cgi-bin/man.cgi?query=run-parts [original finit]: http://helllabs.org/finit/ [EeePC fastinit]: https://web.archive.org/web/20071208212450/http://wiki.eeeuser.com/boot_process:the_boot_process [Claudio Matsuoka]: https://github.com/cmatsuoka [Joachim Wiberg]: https://troglobit.com [License]: https://en.wikipedia.org/wiki/MIT_License [License Badge]: https://img.shields.io/badge/License-MIT-teal.svg [GitHub]: https://github.com/troglobit/finit/actions/workflows/build.yml/ [GitHub Status]: https://github.com/troglobit/finit/actions/workflows/build.yml/badge.svg [Coverity Scan]: https://scan.coverity.com/projects/3545 [Coverity Status]: https://scan.coverity.com/projects/3545/badge.svg
