Finit Conditions

• Introduction
• Triggering
• Built-in Conditions
• Debugging
• Internals

Introduction

Conditions are a new addition to Finit, introduced in v3, with the intention of providing a mechanism for common synchronization problems. For example:

• "do not start this service until another process has started", or
• "do not starty until basic network access is available"

Conditions are similar in syntax to declaring runlevels per service. They are specified within angle brackets <> and can be applied to any of the service, task, or run stanza. Multiple conditions may be specified separated by comma. Multiple conditions are logically AND'ed during evaluation, i.e. all conditions must be satisfied in order for a service to run.

Example

    service [2345] <svc/sbin/setupd,svc/sbin/zebra> /sbin/netd -- Network monitor

In this example the Network monitor daemon netd is not started until both the svc/sbin/setupd and svc/sbin/zebra conditions are satisfied. An svc condition is satisfied by the corresponding service's PID file being created.

NOTE: Conditions also stop services when a condition is no longer asserted. I.e., if the Zebra process above stops or restarts, netd will also stop or restart.

Triggering

Conditions can only be triggered by built-in plugins.

Conditions retain their current state until the next reconfiguration or runlevel change. At that point all set conditions transition into the flux state, meaning the condition's state is unknown. (For more info on this, see Internals.) Thus, after a reconfiguration it is up to the "owner" of the condition to convey the new (or possibly unchanged) state of it.

Built-in Conditions

Finit is distributed with a pidfile and netlink plugin. If enabled, the pidfile plugin watches /var/run/ for PID files created by the monitored services, and sets a corresponding condition in the svc/ namespace. Similarily, the netlink plugin provides basic conditions for when an interface is brought up/down and when a default route (gateway) is set, in the net/ namespace.

With the example listed above, finit does not start the /sbin/netd daemon until setupd and zebra has started and created their PID files. Which they do when they have completed their initial set up and are ready to receive signals.

The full path to the dependency is needed by finit to match the PID file to a monitored process. Finit expects monitored services to touch their PID files, i.e. update the mtime, when they reload their configuration files after a SIGHUP. Some services do not support SIGHUP and are instead restarted, which is a crude but effective way to have the PID file touched (re-created).

Built-in conditions:

• svc/<PATH>
• net/route/default
• net/<IFNAME>/exist
• net/<IFNAME>/up
• net/<IFNAME>/running

Note: up means administratively up, the interface flag IFF_UP. running is the IFF_RUNNING flag, meaning operatively up. The difference is that running tells if the NIC has link.

Composition

The svc/ conditions can be quite tricky to understand. They are generated by the Finit pidfile.so plugin and are composed from the daemon's path and the pidfile name (and path).

service	pid:	pidfile path	svc condition
/sbin/foo		/run/foo.pid	svc/sbin/foo
/sbin/bar -p /run/baz.pid	pid:baz	/run/bas.pid	svc/sbin/baz
lxc-start -n foo -p /run/lxc/foo.pid	pid:lxc/foo.pid	/run/lxc/foo.pid	svc/lxc/foo
/usr/bin/dbus-daemon	pid:dbus/pid	/run/dbus/pid	svc/usr/bin/dbus

Omitting the pid: to run/task/service/sysv stanza means Finit will guess the pidfile path based on /run/ and the basename(1) of the program.

Debugging

If a service is not being started as it should, the problem might be that one of its conditions is not in the expected state. Use the command initctl status to inspect service status. Services in the ready state are pending a condition.

In that situation, running initctl cond show reveals which of the conditions that are not satisfied. Listed as off below.

Example:

    ~ # initctl cond show
    PID     Service               Status  Condition (+ on, ~ flux, - off)
    ===============================================================================
    1419    /sbin/netd            on      <+svc/sbin/setupd,+svc/sbin/zebra>
    0       /sbin/udhcpc          off     <-net/vlan1/exist>

Here we can see that netd is allowed to run since both its conditions are in the on state, as indicated by the +-prefix. udhcpc however is not allowed to run since net/vlan1/exist condition is not satsifed. As indicated by the --prefix.

To fake interface vlan1 suddenly appearing, and test what happens to udhcpc we can enable debug mode and assert the condition, like this:

    ~ # initctl debug
    ~ # mkdir -p /var/run/finit/cond/net/vlan1
    ~ # cp /var/run/finit/cond /var/run/finit/cond/net/vlan1/exist

Then watch the console for the debug messages and then check the output from initctl cond show again. The client will likely have failed to start, but at least the condition is now satisfied.

There is also the initctl cond dump command, which dumps all known conditions and their current status.

Internals

As shown previously, conditions are implemented as simple files in the file system, in the /var/run/finit/cond/ sub-directory. The files are created, updated, and removed by condition plugins. To debug them, see the previous section.

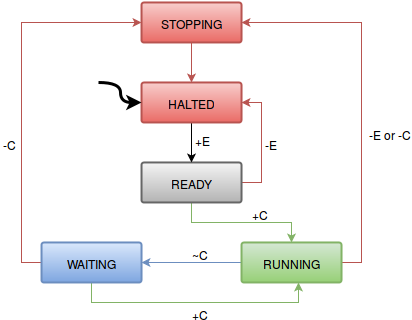

A condition is always in one of three states:

• on (+): The condition is asserted.
• off (-): The condition is deasserted.
• flux (~): The conditions state is unknown.

All conditions that have not explicitly been set are interpreted as being in the off state.

When a reconfiguration is requested, Finit transitions all conditions to the flux state. As a result, services that depend on a condition are sent SIGSTOP. Once the new state of the condition is asserted, the service receives SIGCONT. If the condition is no longer satisfied the service will then be stopped, otherwise no further action is taken.

This STOP/CONT handling minimizes the number of unnecessary service restarts that would otherwise occur because a depending service was sent SIGHUP for example.

Therefore, any plugin that supplies Finit with conditions must ensure that their state is updated after each reconfiguration. This can be done by binding to the HOOK_SVC_RECONF hook. For an example of how to do this, see plugins/pidfile.c.
